Seagate RS-232 adapter schematic

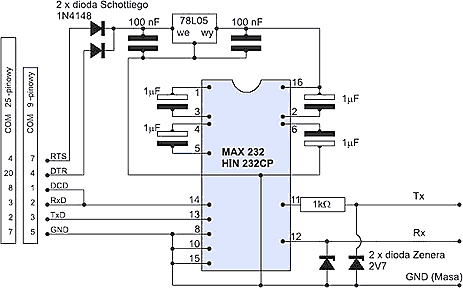

This is an adapter which allows you to connect a Seagate drive to the COM port, allowing to access TMOS using any terminal program.

An adapter which allows you to connect a Seagate drive to the COM port, allowing to access TMOS using any terminal program.

Connect GND to the ground (any wire in PC colored in black)

You can locate Tx and Rx by doing some experiments with jumper-pins of a drive.
